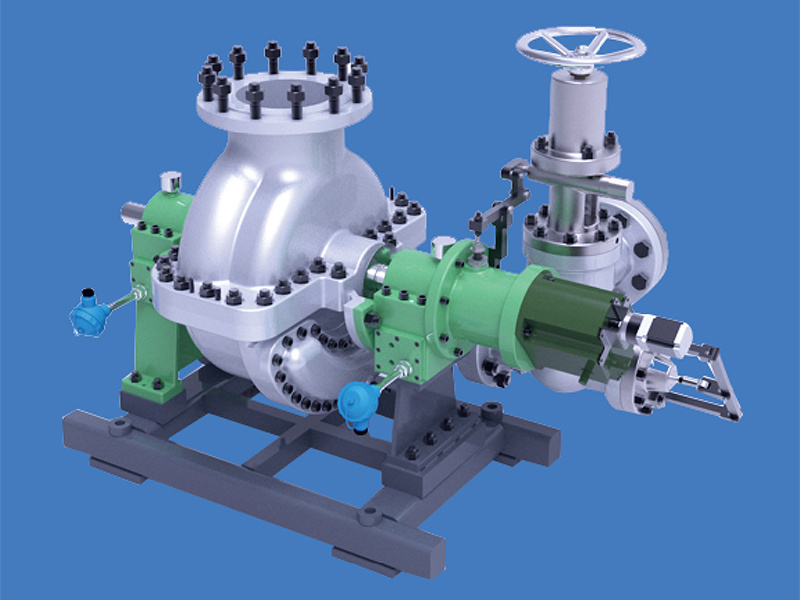

T400 turbine

The T400 steam turbine is a single-stage back pressure steam turbine with a compound speed stage impeller. The impeller pitch diameter is 400 millimeters, the main shaft speed is 1500-4500 revolutions per minute, and the power range is 10-300KW. A gearbox can be installed according to user requirements ..

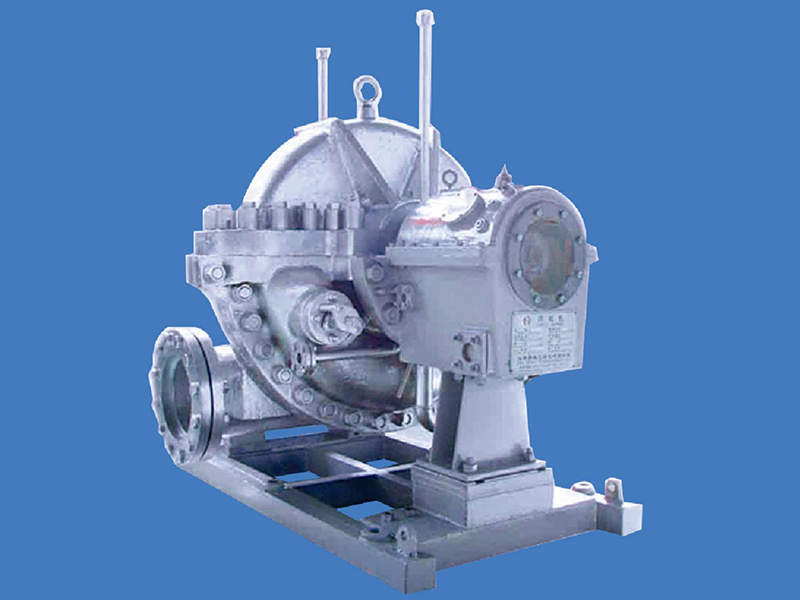

T530 turbine

The T530 steam turbine is a single-stage back pressure steam turbine with a compound speed stage impeller. The impeller pitch diameter is 800 millimeters, the main shaft speed is 1500-4500 revolutions per minute, and the power range is 100-1500KW. A gearbox can be installed according to user requirements ..

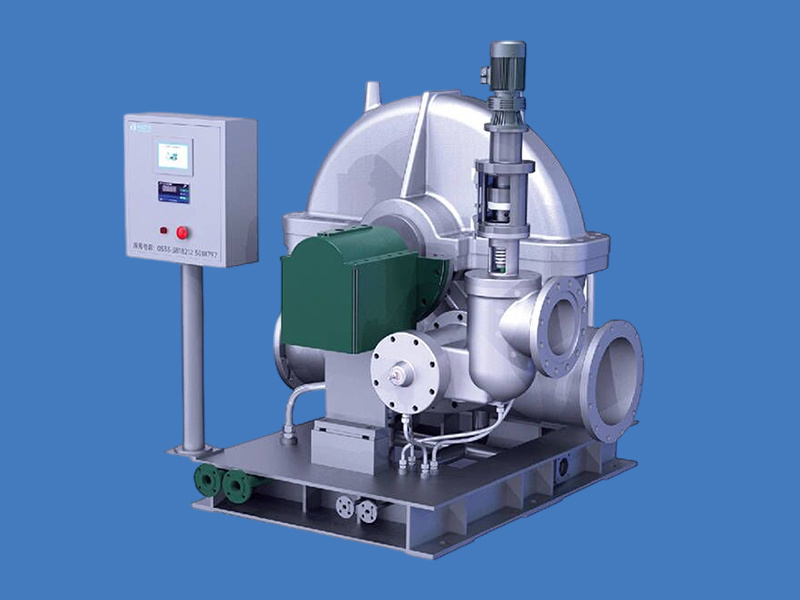

T540 turbine

The T540 steam turbine is a single-stage back pressure steam turbine with a compound speed stage impeller. The impeller pitch diameter is 1040 millimeters, the main shaft speed is 1500-4500 revolutions per minute, and the power range is 200-2500KW. A gearbox can be installed according to user requirements ..

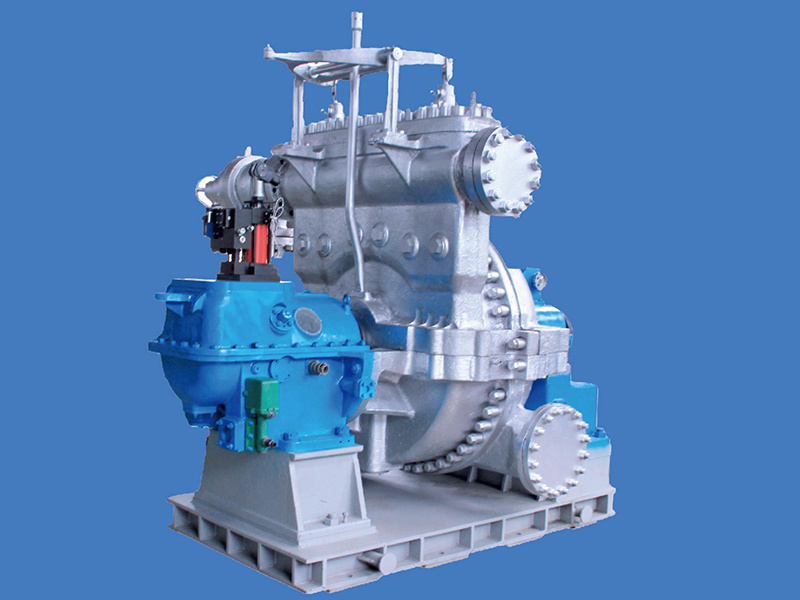

T570 turbine

The T570 steam turbine is a single-stage back pressure steam turbine generator unit with a compound speed stage impeller and a pitch diameter of 1040 millimeters. The speed control system adopts the internationally mainstream American Woodward 505 digital controller+PCC electro-hydraulic converter ..

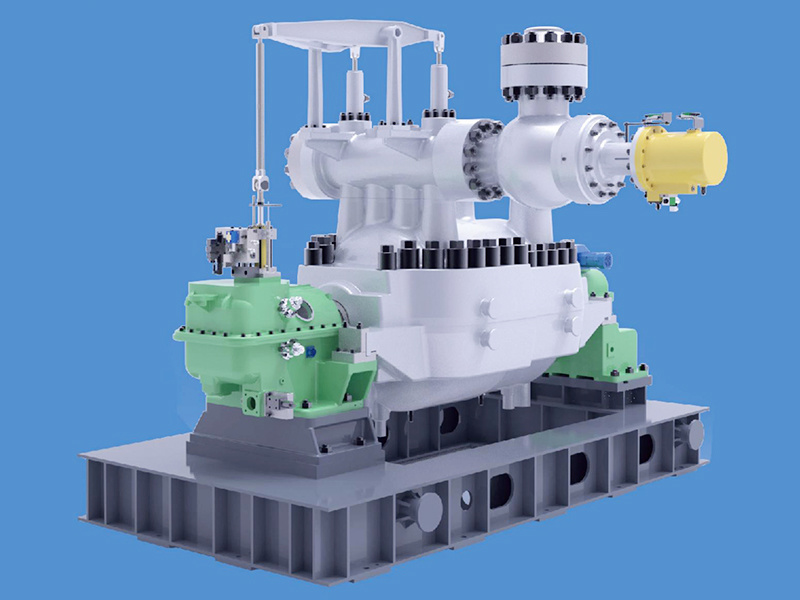

T810 Steam Turbine

The T810 steam turbine is a multi-stage back pressure high-temperature and high-pressure steam turbine. The unit is arranged in a single layer, with a small volume and easy installation. The steam turbine adopts multi valve regulation, forced lubrication, and the main shaft speed is 3000 revolutions per minute. The rotor is a forged rotor. The cylinder adopts an inner and outer dual cylinder design ..

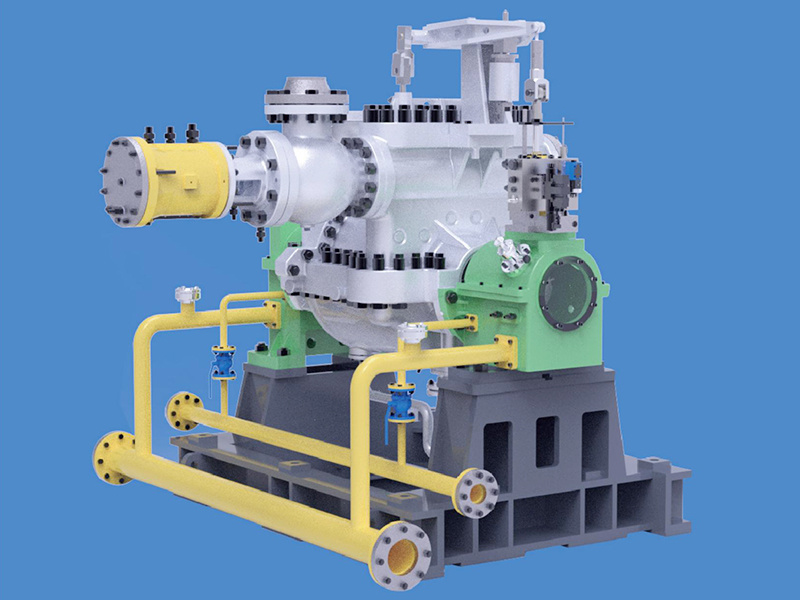

T580 turbine

The T580 steam turbine is a multi-stage back pressure steam turbine with a single layer layout, small volume, and easy installation. The spindle speed is 8000 revolutions per minute. The maximum speed can reach 10000 revolutions per minute. The rotor of this unit is a forged rotor, and the flow section consists of one regulating stage ..

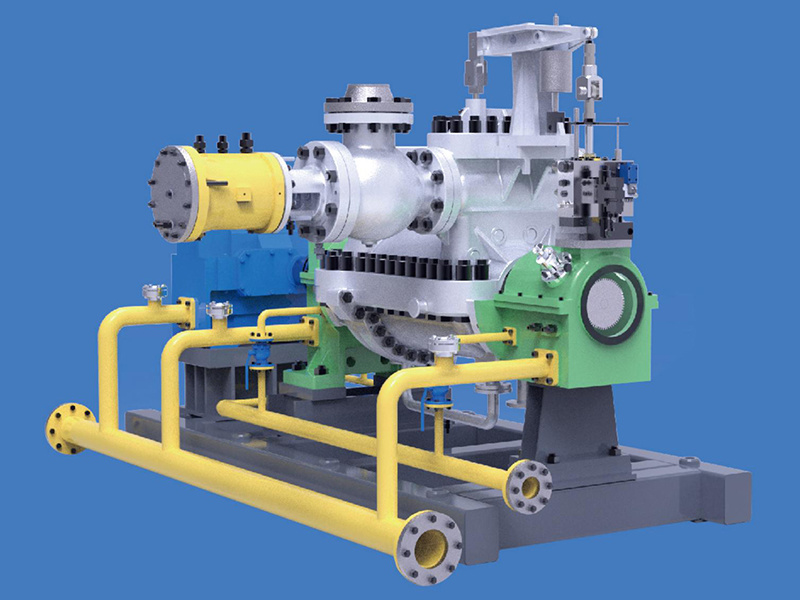

T380 turbine

The T380 steam turbine is a multi-stage back pressure steam turbine, with a single layer layout, small volume, and easy installation. The main shaft speed is 8000 revolutions per minute, with a maximum of 12000 revolutions per minute. The rotor of this unit is a forged rotor, and the flow passage is composed of one regulating stage and four compressors ..

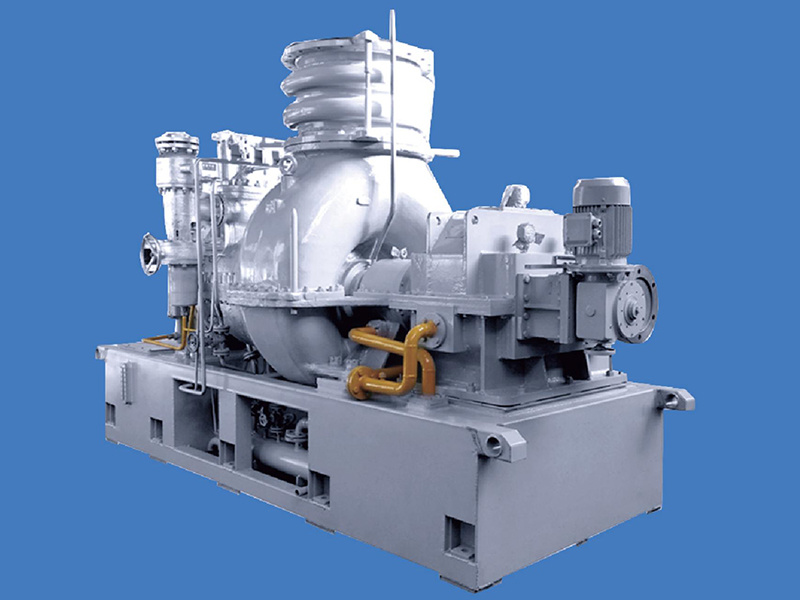

T560 turbine

The T560 steam turbine is a multi-stage condensing steam turbine, with a single layer arrangement of units and a main shaft speed of 5600-6500 revolutions per minute. The T560 can use superheated fresh steam or saturation temperature, with a minimum inlet steam pressure of only 0.45 MPa and an inlet steam temperature of saturation ..

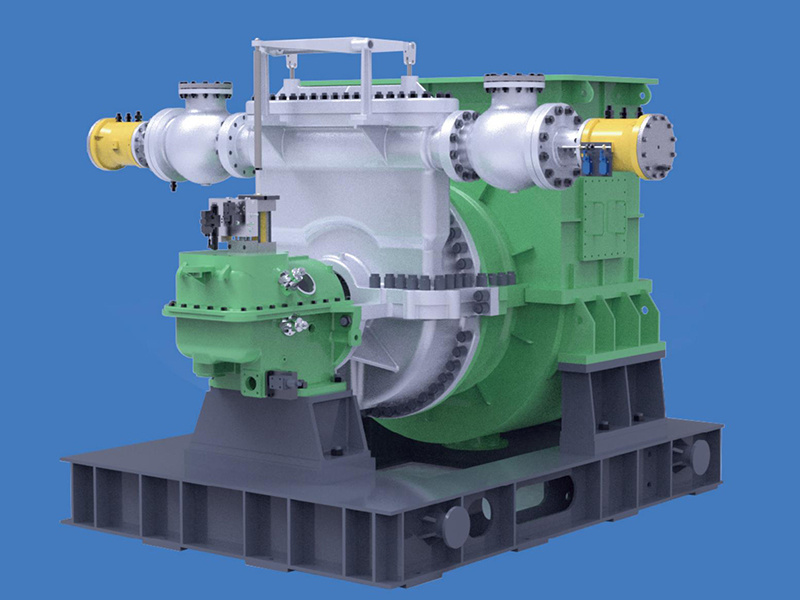

T710 turbine

The T710 steam turbine is a multi-stage condensing steam turbine with a single layer layout, small volume, and easy installation. The steam turbine adopts multi valve regulation, forced lubrication, and the main shaft speed is 3000 revolutions per minute. The rotor is a set rotor consisting of 8 impellers, which can be customized according to the user ..

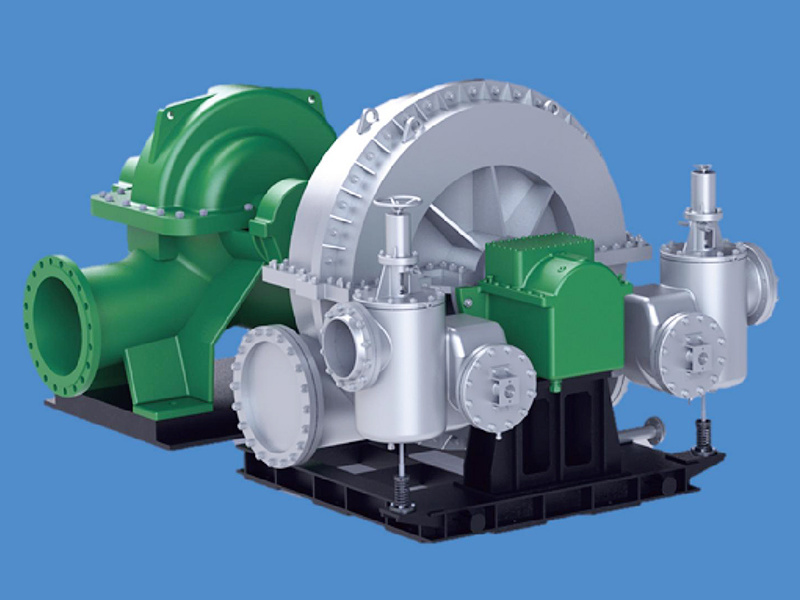

T160 turbine

The T160 steam turbine is a single-stage back pressure steam turbine with a compound speed stage impeller. The diameter of the impeller pitch circle is 1600 millimeters, the main shaft speed is 1500 r/min, and the power is 900-3000 kW. This model is designed to drive low-speed, high flow, and large ..
