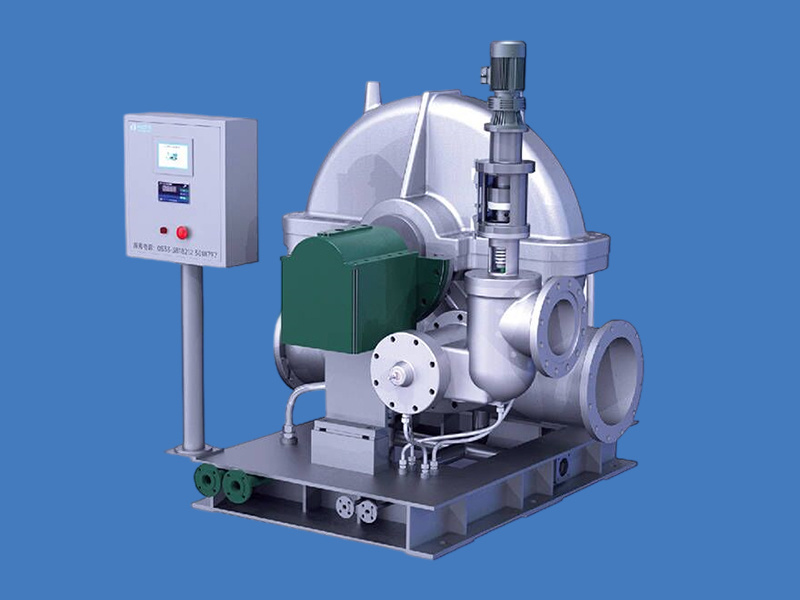

T540 turbine
The T540 steam turbine is a single-stage back pressure steam turbine with a compound speed stage impeller. The impeller pitch diameter is 1040 millimeters, the main shaft speed is 1500-4500 revolutions per minute, and the power range is 200-2500KW. A gearbox can be installed according to user requirements to achieve variable speed. The main feature of this model is to use steam from low temperature and low pressure to sub high temperature and high pressure as the steam source to drive rotating machinery to do work, achieving the cascading utilization of energy to achieve the goal of energy conservation and consumption reduction.
Category:
Industrial drag turbine
key word:
T540 turbine
Text and image details
Structural features:
Structural form: Quick installation double pivot impulse single-stage back pressure steam turbine
Layout method: single layer(Can be on the same base as the dragged device)
Mechanical speed regulation: beautiful country woodward-TG13 TG17
电子调速： 德国西门子 PLC 和日本光荣直行程执行器美国 woodward-TG17E+2301
超速保护: 两套机械飞锤式加电磁阀电子智能控制
汽封形式： 含铝炭精弹 簧补偿无间隙密封
主汽门： 一体化自动主汽门 (速关调节组合阀)
主轴总装： 复速级叶轮叶片, 转子与叶轮过盈套装，叶轮叶片为嵌装式
润滑系统： 配置甩油环结构的自润滑轴承
热胀补偿： 前轴承支撑为滑动热补偿

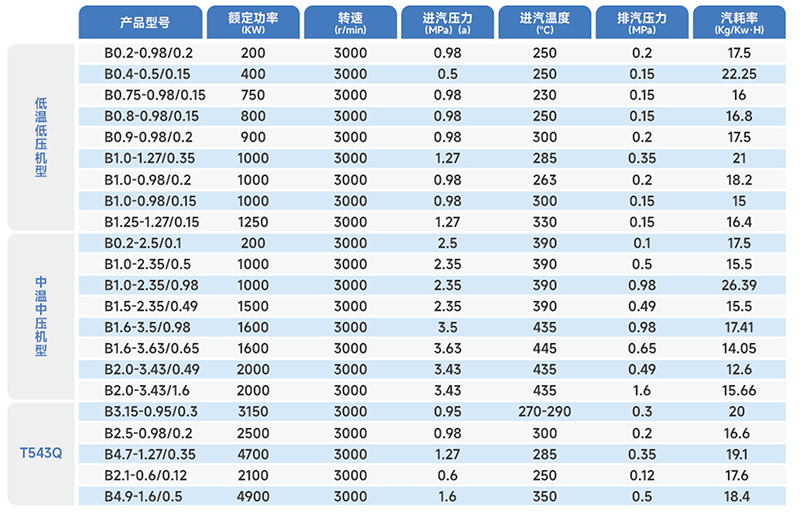

技术规格：
注:进排汽压力为绝对压力，汽轮机本体重量3.4T外形尺寸2100mm*1580mm*1760mm
